weBoost Home 3G Cellular Signal Booster Kit

by weBoost
Part # 473105
DISCONTINUED

Product Description

weBoost Home 3G Cellular Signal Booster Kit

The weBoost Home 3G is designed to significantly improve your coverage in 1-2 rooms in your home so you no longer have to worry about dead spots. It works especially well in modern, energy efficient buildings known to contain materials that weaken cell signals. Best of all, 3G Home will not only boost your signal on your own cellularly-connected devices—including tablets and laptops—it will also work for everyone else you invite into your home.

How The Kit Works

The Booster receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device.  It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower.  It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.

Coverage Area

  • Intended Use: Designed for signal amplification of a small work space or room

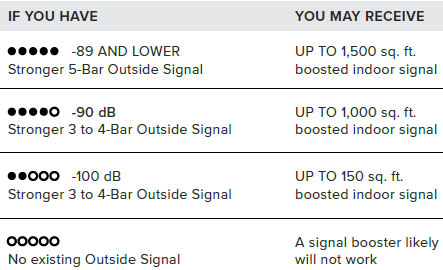

  • Typical Coverage Range: Typical Coverage Range: Depends on initial signal strength , obstructions, composition of walls, placement of equipment, etc.  See table below for coverage estimates
  • Expandability: Not Expandable

Features and Benefits

  • Boost 3G, talk & text, reduce dropped calls, improve voice quality, extend service range, and increase data rates on all phones with all carriers
  • For buildings: home, office, cottage, apartment or SOHO
  • Easy to install, complete DIY (do-it-yourself) kit
  • Effective in amplifying the signal for multiple cell phones and data cards simultaneously
  • There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with a booster will consume less power



Specifications

Amplifier Specifications

  • Frequency Range: Band 5 (850 MHz), Band 2 (1900 MHz)
  • Max Gain: 60 dB
  • Power Req: 110-240 V AC, 50-60 Hz, 8 W
  • Connectors: SMA-Female (inside antenna) F-Female (outside antenna)
  • Impedance: 75 ohms
  • Dimensions: 6.3 x 1.4 x 4.2 in
  • Weight: 0.45 lbs

Package Contents

  • Home 3G ellular amplifier/ repeater
  • Inside desktop antenna
  • Outside panel antenna
  • Power supply
  • 1 x 30' + 1 x 20' White low loss RG6 (75ohm) coax cable
  • F-Female barrel connector
  • Installation manual/ instructions

Documentation

FCC Mandatory Registration
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
  • You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
  • You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
  • WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
  • Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
Click here for registration links to the five largest carriers in the country.
