Wilson 60 dB In-Building Wireless Amplifier Kit for Nextel

Part # 844006
DISCONTINUED BY MANUFACTURER

Product Description

Wilson 60 dB In-Building Wireless Amplifier Kit for Nextel

Purchasing the correct building amplifier solution for your large home or office just got easier with Wilson's Wireless In-Building Amplifier Solution. This is Wilson's highest gain single band in-building amplifier bundled with commonly used lengths of cables and antennas. A convenient way of purchasing all the equipment you will need for more common installations.

Coverage Area
This Wilson Amplifier Kit is designed for use in a large building

  • Range: 30 to 60 feet radius depending on signal strength and other factors
  • Due to the many variables involved with determining coverage areasignal strength, obstructions, composition of walls, placement of equipment, etc.coverage area distance is an estimate at best.
Features and Benefits
  • Includes all the components needed for a typical building installation
  • Compatible with Nextel phones working on iDEN technology
  • Wilson Wireless Amplifiers can significantly improve cell phone reception inside of a building
  • Wilson Amplifier receives the signal coming from the cell tower, amplifies it, and then transmits the more powerful signal to your cell phone
  • It also receives the signal coming from your cell phone, amplifies it, and transmits it back to the tower
  • It essentially acts as a 2-way hearing aid when the phone and tower are unable to communicate effectively
  • There is no physical connection to the phone so you can walk freely during a call
  • Effective with 12 phones simultaneously
  • Reduces dropped calls and noise
  • Improves voice quality, service range and access
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
  • Works great in homes, offices and buildings
  • All of the above benefits apply to data cards as well

Amplifier Specifications

  • 800 MHz iDEN Band, (806-821 MHz, 851-866 MHz)
  • Automatic Gain Control Up To 60 dB
  • Maximum 3 watts Output Power
  • Overload Protection Circuit Protects Cell System From Overload
  • Automatic Reset If Overload Occurs
  • AC Power Supply Included
  • Power Control Logic Ensures Maximum Output Power Is Within Cellular Limits
  • 2 dB Gain Step 30-60 dB
  • Dimensions: 5.6 x 3.6 x 1.7 (inch) / 14.2 x 9.1 x 4.4 (cm)
  • Weight: 1.5 lbs / 0.7 kg

Inside Panel Antenna Specifications

  • Built-in ground plane
  • Mounting hardware included
  • Frequency Range: 800-960 MHz / 1710-2500 MHz
  • Gain: 7 dBi / 10 dBi
  • Impedance: 50 ohms Connector: N Female
  • Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
  • Weight: 1.32 lbs / 0.6 kg

Outside Yagi Antenna Specifications

  • Directional antenna
  • Mounts on pipe with 1.25 inch to 2 inch diameter
  • Optional Pole Mounting Kit (Sold Seperately)
  • Frequency Range: 800-900 MHz
  • For use with Verizon, Alltel, US Cellular, Cellular One, AT&T, Nextel, SouthernLINC, Bell Canada, Telus, Mike and all other iDEN carriers
  • Impedance: 50 ohms
  • Antenna Gain: 13 dBi
  • Max Power: 10 watts
  • Polarization: Vertical or Horizontal
  • Connector: N-Female
  • Material: Aluminum
  • Length: 14.4 inches / 37 cm (with mount)
  • Weight: 2.9 ounces / 0.081 kg (with mount)

Included With This Kit

  • Amplifier - 804006
  • Outside Yagi Antenna - 301129
  • Inside Panel Antenna - 301135
  • 50' Low Loss LMR400 Cable - 952350
  • 20' Low Loss LMR400 Cable - 952320

Product Documentation

  • User Guide - (Includes general installation instructions)

Please Note
The components used for this bundle have been determined by Wilson Electronics to be suitable for most large building installations. However, particular needs do vary and additional or different equipment might be needed such as:

  • Longer lengths of cables
  • Splitters for multiple Indoor Antennas
  • Fitting Adapters
    If you believe that your installation requires equipment other than the bundled components provided with this kit or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250

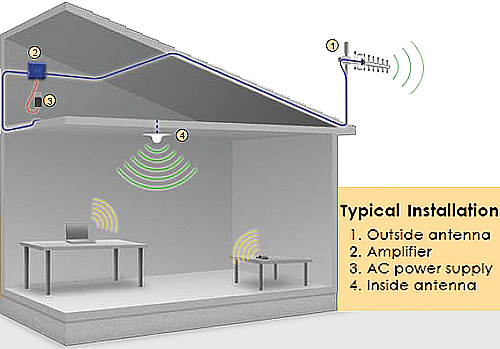

Installations
No configuration of the amplifier is needed, but you will have to make the connections and mount the outside antenna on the roof of the building. If you believe professional installation is required, please contact us for more details. (310) 220-2250


Compatibility

Nextel
