Wilson U-Booster Vehicle Charging Cradle / Amplifier Kit

The Wilson UBooster improves both voice and data performance on the road. With 20 times the power to the cell site of a cell phone alone, it features a built-in antenna, adjustable side-grip brackets with foam pads and works with Cellular (800 MHz) and PCS (1900 MHz) frequencies.

Features and Benefits

• U-Booster reduces dropped calls, extends signal range, and increases data rates
• Built in amplifier boosts signals to and from cell site
• Up to 20 TIMES more output power to cell site when in a vehicle
• Receives weak signals the phone alone may not
• Extends battery life- Wilson U-Booster enables phone to work at reduced power
• Simplifies hands free operation
• Installs in minutes no special tools required
• Package includes everything needed -- plug-and-play
• Attractive, compact design

Specifications

• Frequency 824-894 MHz / 1850-1990 MHz
• Gain 40 dB / 42 dB
• Max Output Power 2000 mw
• Max RF (downlink) -20 dBm
• Noise Figure 3.5 dB nominal
• Flatness +-4dB
• Isolation > 90 dB
• Connectors SMA Female
• Dimensions 2 x 4.75 x 1 (inch) 5.1 x 12.1 x 2.5 (cm)
• Weight 3 (oz) / 0.09 (kg)

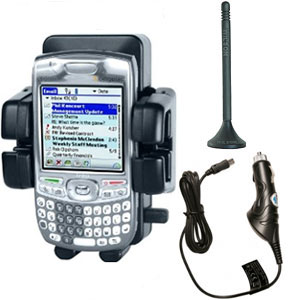

Included Parts

• Wilson U-Booster All-in-one amplifier, built-in antenna and cradle combo

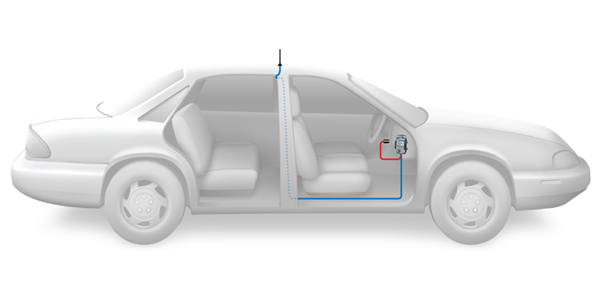

• Outside vehicular magnet-mount antenna
• Mounting clips
• Installation guide

Product Documentation

• Wilson U-Booster Installation Guide
• Please Note: Although the installation guide refers to the iBooster, the majority of the information within is applicable to all models in the Wilson Cradle Booster Series.

Important Note

The Wilson U-Booster requires the use of a cigarette lighter charger that is compatible with your phone (not included). To purchase a cigarette lighter charger, please visit your phones accessories page.
