Wilson AG SoHo 60 Wireless Amplifier Kit

How The Kit Works

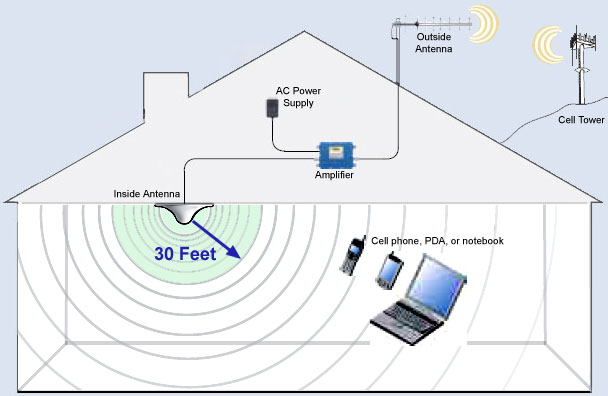

Coverage Area

• Designed for signal amplification in a Single Room
• Typical Coverage Range: 30 feet radius from the indoor antenna depending on initial signal strength and other factors
• Expandability: None - Adding a splitter for an additional inside antenna is not advised with this kit
• Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best.

Features and Benefits

• Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
• Effective in amplifying the signal for multiple cell phones and data cards simultaneously
• There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
• Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power

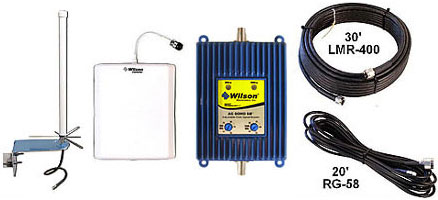

Included With This Kit

• Amplifier - 801245
• Outside Dual Band Omni-Directional Antenna - 301202
• Inside Panel Antenna - 301135
• 30' LMR400 Coax Cable - 952330
• 20' RG-58 - 951104
• Adapter - 971108

Amplifier Specifications

• Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
• Gain: 55 dB (1850-1990 MHz) / 60 dB (824-894 MHz)
• Max Uplink Power 1200 mw / 1114 mw
• Max Downlink Power 26 dBm / 25 dBm
• Noise Figure 3 dB / 4 dB nominal
• Flatness ±5 dB
• Power Requirements 6 V DC / 3A max
• Connectors: FME-Male
• Impedence: 50 ohms
• Dimensions: 5.6" x 3.6" x 1.7"
• Weight: 1.5 lbs
• Amplifier Installation Guide

Inside Panel Antenna Specifications

• Part# 301135
• Mounting hardware included
• Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
• Impedance: 50 ohms
• Polarization: Vertical
• Gain:
  • 5.2 dBi (700-800MHz)
  • 4.4 dBi (824-894MHz)
  • 4.2 dBi (880-960MHz)
  • 10.0 dBi (1710-1880MHz)
  • 10.6 dBi (1850-1990MHz)
  • 8.2 dBi (2110-2170MHz)
• Max Power: 50 watts
• Beamwidth Hor. Plane: 70°
• Beamwidth Ver. Plane: 50°/45°
• Connector: N-Female
• Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
• Built-in ground plane
• Weight: 1.32 lbs / 0.6 kg
• Inside Antenna Installation Guide

Outside Antenna Specifications

• Part# 301202
• Omni-Directional antenna
• Includes L- Bracket and Bolt Assembly for mounting to side of building or on pole with 1.25 inch to 2 inch diameter
• Dual Band Frequency Range: 700-894 / 1850-1990 MHz (Cellular, PCS & iDEN Carriers)
• Impedance: 50 ohms
  • Antenna Gain:
  • 3.2 dBi (700-800MHz)
  • 5.12 dBi (824-894MHz)
  • 2.7 dBi (880-960MHz)
  • 0.6 dBi (1710-1880MHz)
  • 6.12 dBi (1850-1990MHz)
  • -7.5 dBi (2110-2170MHz)
• Max Power: 25 watts
• Beamwidth Hor. Plane: 360°
• Beamwidth Ver. Plane: 60°
• Polarization: Vertical
• Connector: FME-Female
• Length: 18 inches / 45.7 cm
• Built in 14" of cable
• Material: Fiberglass
• Outside Antenna Installation Guide

Installations

• Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you.  Click here for more details.
