Wilson AG SOHO 65 Dual Band Wireless Amplifier

REPLACED BY 460103
Part # 805045
Discontinued by Manufacturer

Product Description

REPLACED BY: 460103



Wilson AG SOHO 65 Amplifier With Adjustable Gain Control

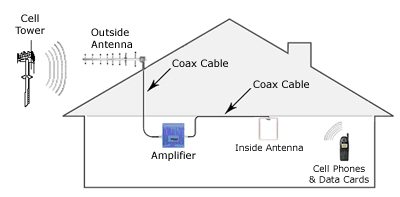

The Wilson AG SOHO 65 Amplifier With Adjustable Gain Control significantly improves cell phone reception inside of a building when installed with the required antennas and coax cables (sold separately).  An antenna mounted on the outside of the building receives the signal from the cell tower and transmits it to the amplifier via a coax cable.  The power of the signal is increased, sent through another coax cable to an inside antenna, and then transmitted to your phone.  The Wilson Amplifier System also amplifies the signal going from your phone to the cell tower.  It essentially works as a 2-way hearing aid for your phone.

The Wilson AG SOHO 65 features adjustable gain control dials.  This simplifies installation by making antenna placement less critical and gives an installer greater flexibility to optimize the amplifier's gain level to match the installation requirements of the building in which it is deployed.

Typical installations require 4 additional components that are sold separately.
The specific parts needed will vary based on your building layout, dimensions, etc.  You can purchase components through the links below (advanced) or fill out our questionnaire to receive a customized quote from one of our experts (recommended).


  1. Outside Antenna
  2. Inside Antenna
  3. Coax Cable (Amplifier to Outside Antenna)
  4. Coax Cable (Amplifier to Inside Antenna)



Features and Benefits

  • Designed for small buildings: homes, offices, apartments, etc.
  • Typical (single antenna) installations allow for coverage of approximately 50 feet radius from the inside antenna
  • Adjustable Gain (AG) Control - Allows for gain optimization to match specific building requirements and make antenna placement less critical
  • Significantly improves voice signal quality, service range, and access
  • Improves data communication rates for 2G and 3G technologies
  • Greatly reduces dropped calls and noise
  • There is no physical connection to the phone so you can walk freely during a call
  • Allows multiple cell phones and cellular data cards to be used at the same time
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
  • For 800 MHz Cellular and 1900 MHz PCS Bands
  • Works on all generations of CDMA, TDMA, GSM, and 3G
  • Designed for all US Service Providers except for Nextel
  • Overload protection circuit protects cell towers from being overloaded
  • Oscillation (or interference) detection and automatic shutdown with auto reset

Specifications

  • Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
  • Gain: 62 dB (1850-1990 MHz) / 65 dB (824-894 MHz)
  • Max Uplink Power 1140 mw / 1114 mw
  • Max Downlink Power 26 dBm / 25 dBm
  • Noise Figure 3 dB / 4 dB nominal
  • Flatness ±5 dB
  • Power Requirements 6 V DC / 3A max
  • Connectors: N-Female
  • Impedence: 50 ohms
  • Dimensions: 5.6 x 3.6 x 1.7 (inches) / 14.2 x 9.1 x 4.4 (cm)
  • Weight: 1.5 lbs / 0.7 kg

Included Parts

  • 805045 Amplifier
  • AC Power Supply
  • Installation Guide

Product Documentation

  • User Guide - (Includes general installation instructions)

Installation

  • Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you.  Click here for more details.

Compatibility

All phones and data cards on all major US service providers
