Wilson Dual Band SIGNALBOOST DT Wireless Amplifier Kit

WORK SPACE
Regular Price:
Part Number:
801247
Vendor:
Brand:
Wilson Electronics
Weight:
Rating:
()
Availability:
Shipping:
Gift Wrapping:
Price:
$299.99
Quantity:

Product Description

Coverage Area
The Wilson Desktop Amplifier kit is designed for a small work area such as a desk or work space
  • Range: 6 to 15 feet radius depending on signal strength and other factors
  • Due to the many variables involved with determining coverage area signal strength, obstructions, composition of walls, placement of equipment, etc., coverage area distance is an estimate at best.

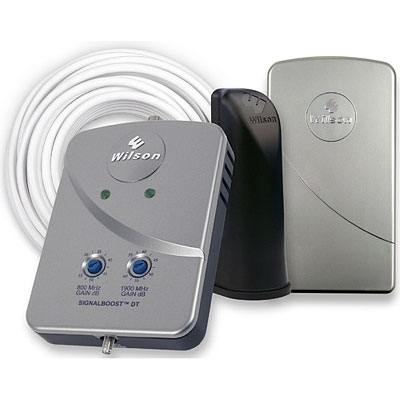

    Wilson SignalBoost DT Wireless Desktop Amplifier
  • Wilson Wireless Amplifiers can significantly improve cell phone reception inside of a building
  • The Wilson SignalBoost DT Amplifier is designed for small work areas such as a desk or work space
  • Adjustable gain to simplifies installation

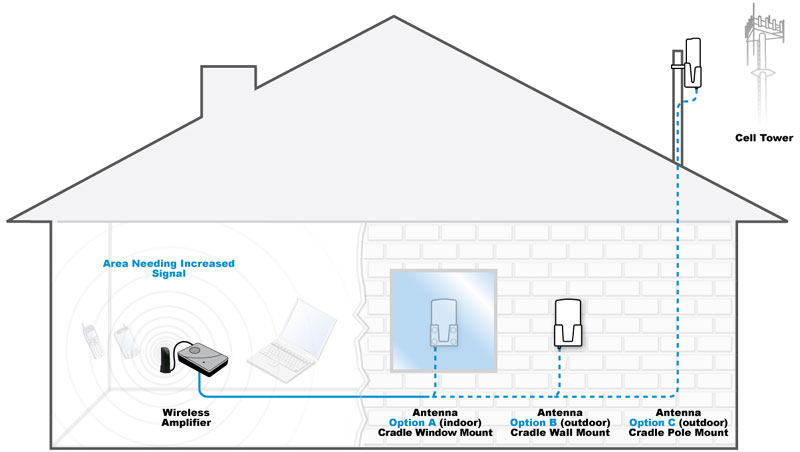

  • The Wilson Amplifier receives the signal coming from the cell tower, amplifies it, and then transmits the more powerful signal to your cell phone
  • It also receives the signal coming from your cell phone, amplifies it, and transmits it back to the tower
  • It essentially acts as a 2-way hearing aid when the phone and tower are unable to communicate effectively
  • There is no physical connection to the phone so you can walk freely during a call
  • Reduces dropped calls and noise
  • Improves voice quality, service range and access
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
  • Compatible with all service providers except Nextel/iDen
  • All of the above benefits apply to data cards as well

    Product Features
  • Greatly reduces dropped calls
  • Supports multiple phones and cellular-based data cards simultaneously
  • Comes with everything you need - plug and play
  • Oscillation and overload protection
  • Easy to install and use
  • Up to 10 times more powerful than your cell phone
  • Attractive, sleek design

    Technical Specifications
  • Frequency: 824-894 MHz / 1850-1990 MHz
  • Gain: 56 dB / 56 dB
  • Maximum 1.3 watts Output Power
  • Max output power: +33 dBm
  • Power requirements: 110-240 V AC, 50-60 Hz, 0.6 A max
  • Connectors: TNC Female / F-Female
  • Dimensions: 6.2 x 4.2 x 1.5 (inch)
  • Weight: 0.64 lbs / 0.29 kg

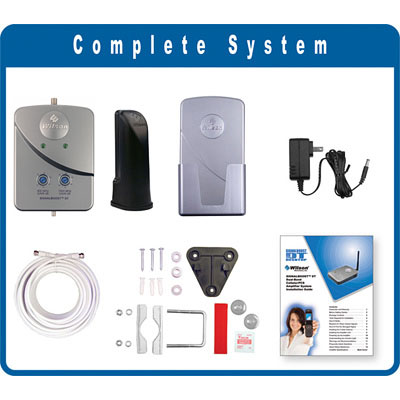

    Package Contents
  • Outdoor / window directional 5 dB cradle antenna
  • Omni-directional inside antenna
  • One 30-foot coax cable
  • One 20-foot coax cable
  • All mounting hardware
  • AC power supply
  • Installation guide

    Product Literature
    Click here to view the installation guide for this product
