Wilson Dual Band Wireless Vehicle Amplifier Kit

Wilson Dual Band Wireless Vehicle Amplifier Kit

• Significantly improves your cell phone reception in your vehicle
• There is no physical connection to the phone - it amplifies the signal wirelessly
• Compatible with all US service providers except Nextel
• Also compatible with data cards / wireless PC cards
• Works with multiple devices simultaneously

Included Parts

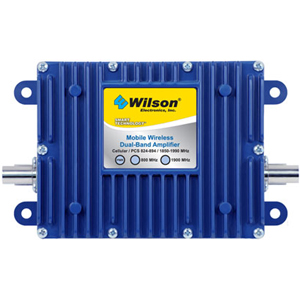

• Wireless Amplifier 801201
• Vehicle Power Cord 859904 - Plugs into the cigarette lighter port
• Outside Antenna 301103 - Mounts to your vehicle's roof with magnetic base
• Inside Antenna 301127 - Mounts to interior of your vehicle with adhesive

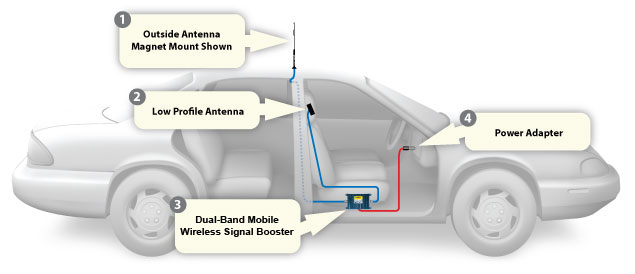

How It Works

• The outside antenna receives the signal from the cell tower and sends it through the cable to the amplifier. The signal is then boosted and transmitted wirelessly through the inside antenna to your cell phone / data card.
• The Amplifier Kit also boosts the signal going from the cell phone / data card to the cell tower, providing effective 2-way communication.

Specifications

• Dual Band: Cellular and PCS - supports CDMA, TDMA, GSM, AMPS, and 1x and 3x data protocols such as HSDPA, EVDO and EDGE
• FME male antenna connectors
• Frequency: 824-894 MHz / 1850-1990 MHz
• Gain: 40 dB / 45 dB
• Amplifier Dimensions: 4.5 x 3.5 x 1.25 inches
• Antenna Cable Lengths: 10 feet
• Maximum 3 watts output power
• Power control logic ensures maximum output power is within cellular standards
• Protects cell sites from harmful interference
• FCC and IC type accepted
• If you would like to use this amplifier with a different outside antenna, please click here to purchase the components separately

Product Documentation

• Click here to view the user guide
