Wilson Sleek Cradle Amplifier Kit

Wilson Sleek Cradle Amplifier Kit

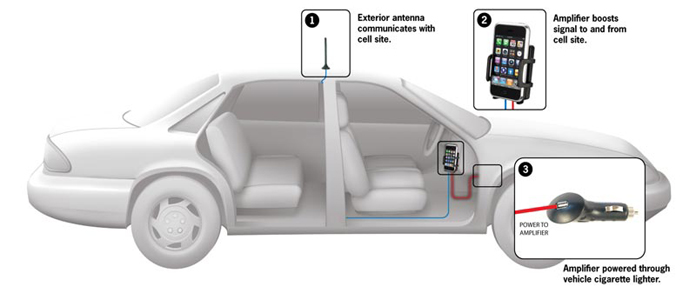

The Wilson plug-and-play Sleek™ helps users reduce dropped calls, increase data rates in weak signal areas and originate calls from those dreaded “dead spots.” The Sleek™ and its external vehicular antenna increases any phone’s output power to the cell site while improving its ability to hear signals it normally cannot, keeping the user more reliably connected. Designed for simple set up, the Sleek™ can be easily moved from vehicle to vehicle.

Features and Benefits

• Reduces dropped calls, extends signal range, and increases data rates
• Built in amplifier boosts signals to and from cell site
• Up to 20 TIMES more output power to cell site when in a vehicle
• Receives weak signals the phone alone may not
• Built-in port for battery charging
• Extends battery life Amplifier enables phone to work at reduced power
• Simplifies hands free operation
• Installs in minutes no special tools required
• Package includes everything needed -- plug-and-play
• Attractive, compact design
• Adjustable arms to fit almost any phone
• Can be adapted for use in a building with wall charger, desk mount and window mount accessories (Sold Seperately, See Related Products link below to purchase)

Specifications

• Frequency 824-894 MHz / 1850-1990 MHz
• Gain: 20 dB (824-894 MHz) / 26 dB (1850-1990 MHz)
• Max Output Power 1.82W or 32.6dBM
• Noise Figure 3.0 dB nominal
• Flatness +-4dB
• Isolation > 40 dB
• Connectors SMA Female
• Dimensions: 2.25 x 4.25 x 2.5 (in) / 5 x 9.5 x 5.6 (cm)
• Weight 2.5 (oz) / 0.07 (kg)

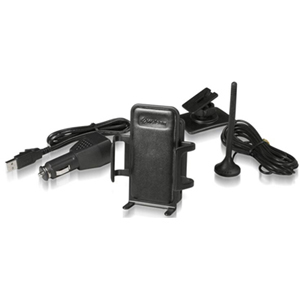

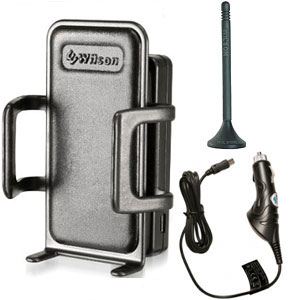

Included Parts

• All-in-one amplifier, built-in antenna and cradle combo
• Outside vehicular magnet-mount antenna
• Cigarette lighter power adapter
• Vehicle dash adhesive mounting bracket
• Installation guide

Product Documentation

• Data Sheet
• Wilson Sleek Installation Guide

Important Notes

• To charge your phone with this device, you will need to use a separate vehicle charger that is specific to your phone (not included). To purchase a cigarette lighter charger, please visit your phone's accessories page.
• For the amplifier to work the phone must stay in the cradle at all times so you will need a wired or wireless headset.  Visit your phone's accessory page for a compatible wired headset, or click here for wireless Bluetooth options.
