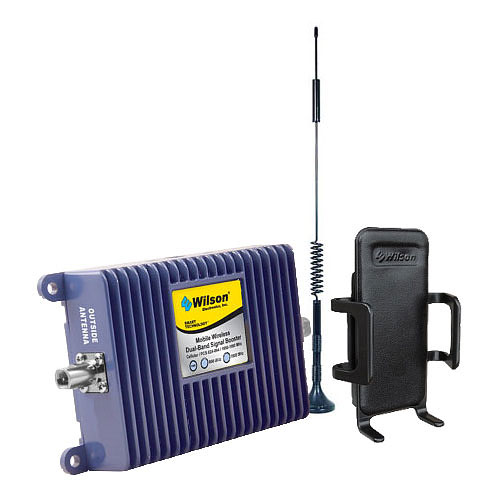

Wilson Dual Band Vehicle Amplifier Kit With Phone Cradle

Wilson Dual Band Vehicle Amplifier Kit With Phone Cradle

Amplifier Specifications

• Significantly improves your cell phone reception
• Reduces dropped calls and noise
• There is no physical connection to your cell phone or cellular data card

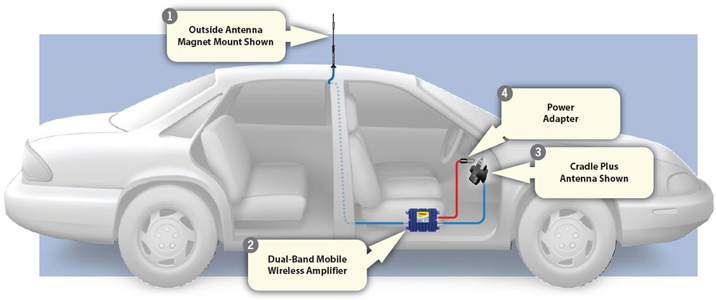

• The signal coming from the cell tower is received by the outside antenna, amplified, and then sent to the phone cradle/inside antenna
• The signal coming from your cell phone is received by the inside antenna/cradle, amplified, and then the more powerful signal is transmitted to the cell tower through the outside antenna
• Allows multiple phones and cellular data cards to be used simultaneously
• Works with all generations of CDMA, TDMA, GSM and high-speed data technologies
• Power control logic ensures maximum output power is within cellular standards
• Automatic gain adjusting in the event of oscillation and/or overload
• Similar to Wilson801231 except for larger size and more wattage
• Maximum 3 watts output power
• Gain: 40 dB / 45 dB
• Cradle does not work with iDEN/Nextel

Magnet Mount Antenna Specifications

• Improves your cell phone's reception
• Magnetic base easily mounts to the roof of your car or any metal surface - this is required for best performance
• Work for both 800 and 1900 MHZ frequencies
• FME Female connector
• Height: 12.25 inches
• Cable Length: 10 feet
• Antenna Gain: 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz

Phone Cradle Specifications

• Versatile car cradle includes built-in antenna - works with all cell phones (except iDEN/Nextel)
• Works with Wilson Mobile Wireless or SignalBoost amplifiers (sold separately) to boost your signal up to 10 times
• Compatible with all cell phones (except iDEN/ Nextel)
• Increases driver safety
• Supports any hands-free device, including earbuds and Bluetooth(R) products
• Adjustable to fit any size cell phone
• Multiple mounting options: console, dashboard, or windshield
• Installs in minutes
• Frequency: 824-960 MHz /1700-2100 MHz
• Impedence: 50 ohms
• Connector: FME Female
• Coax Cable: RG 174 - 7.5 feet
• Length: 4.125 in / 10.5 cm
• Width: 2.875 - 4.5 in / 7.3 - 11.4 cm

Included Parts

• 801201 Amplifier
• 301103 Antenna
• 301146 Phone Cradle
• 859904 Vehicle power adapter

Product Documentation

• Wilson 801213 Installation Guide
