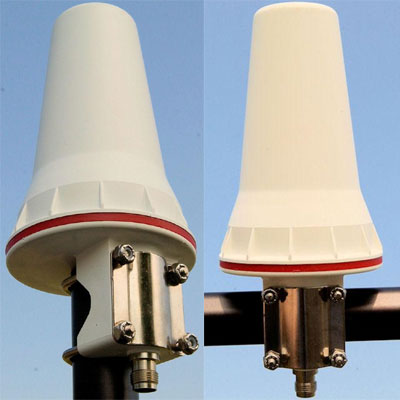

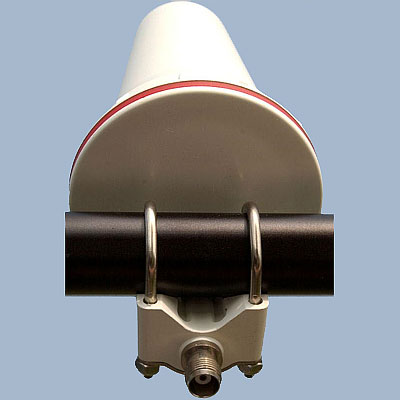

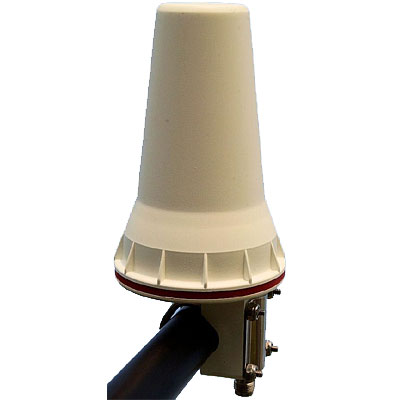

Aero Iridium Fixed Mast Antenna

Aero Iridium Fixed Mast Antenna

The Aero Iridium fixed mast pole mount antenna delivers exceptional reception performance for Iridium permanent in-building or marine applications when no ground plane is available.

Specificatons:

• Dimensions: 3.25” D x 7.3” H (8.3 cm x 18.7 cm)
• Weight: 6.3 oz. (181 g)
• Finish: Weather Polymer White
• Connector: TNC Female
• Frequency: 1616 to 1626 MHz
• Radiation Pattern: Hemispherical
• Polarization: Right Hand Circular
• VSWR: < 2.0 : 1
• Impedance: 50 Ohms
• Power Handling: 1 Watt
• Maximum Cable Loss: Must be kept < 3dB
• Part Number A.K.A.: AT162173W, SAF5340B
