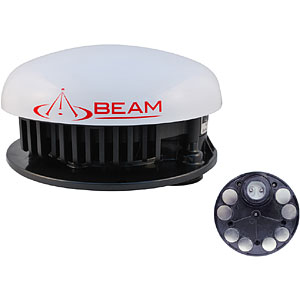

Beam ISD715 Transport Magnetic Mount Active Antenna

Beam ISD715 Transport Magnetic Mount Active Antenna

IsatDock ISD715 Transport Magnetic Active Antenna is designed for transport/land based applications.  It is designed to work with Beam Communications IsatDocks and tracking applications such as LeoTRAK-Online.  With the Magnetic mount, the antenna is very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting. Antenna cable connection is protected from the environment with its outer enclosure.

Features

• Used for mobile or fixed base stations
• Active antenna (power supplied by IsatDock)
• Omni Directional
• Magnetic mounting allows for easy set up and take down from buildings, vehicles, or trains
• Low profile

Specifications

• Dimensions: 2.95" x 5.75" x 5.75"
• Weight: 1.92 lbs.
• Temperature Range: -13° to 131°C
• Impedance: 50 Ohms
• Connection Ports: SMA / SMA

Included Parts

1. Transport Antenna
2. Magnetic Mounting Plate
3. 2 x SMA-SMA Right Angled Adaptors
4. SMA RF Connector Spanner
5. 3 x Small Screws
6. 3 x Large Screws
7. 6 x Small Split Washers
8. 6 x Small Flat Washers

Documentation

• Installation Guide
• Brochure
